Frequency Studio | Graphics - Squeezeback Layouts

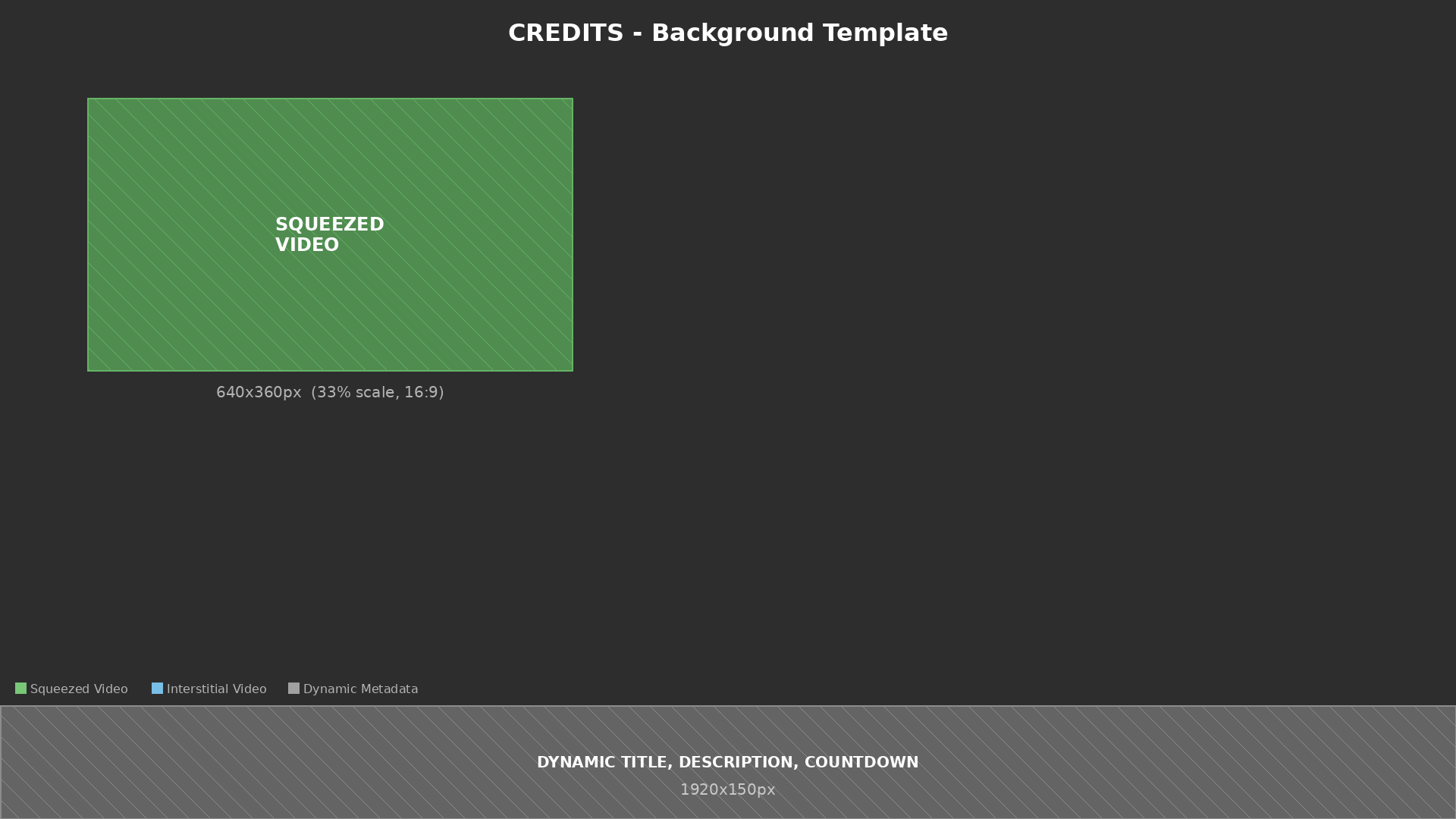

Credits 1920 x 1080

640 x 360px 33% scale at 6% left, 12% top

1920 x 150px Credits box, anchored to bottom

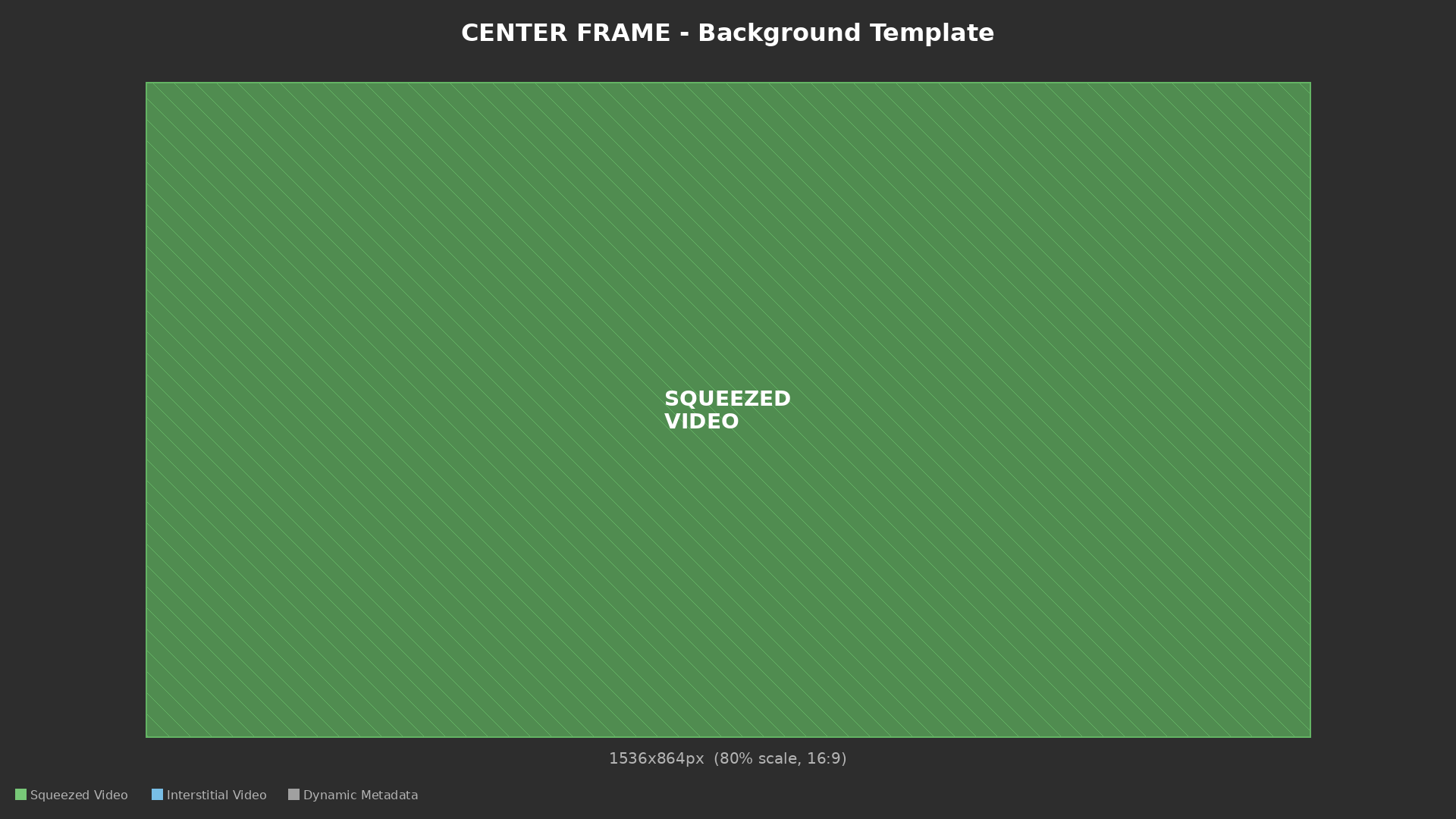

Center Frame 1920 x 1080

1536 x 864px 80% scale, centered (16:9)

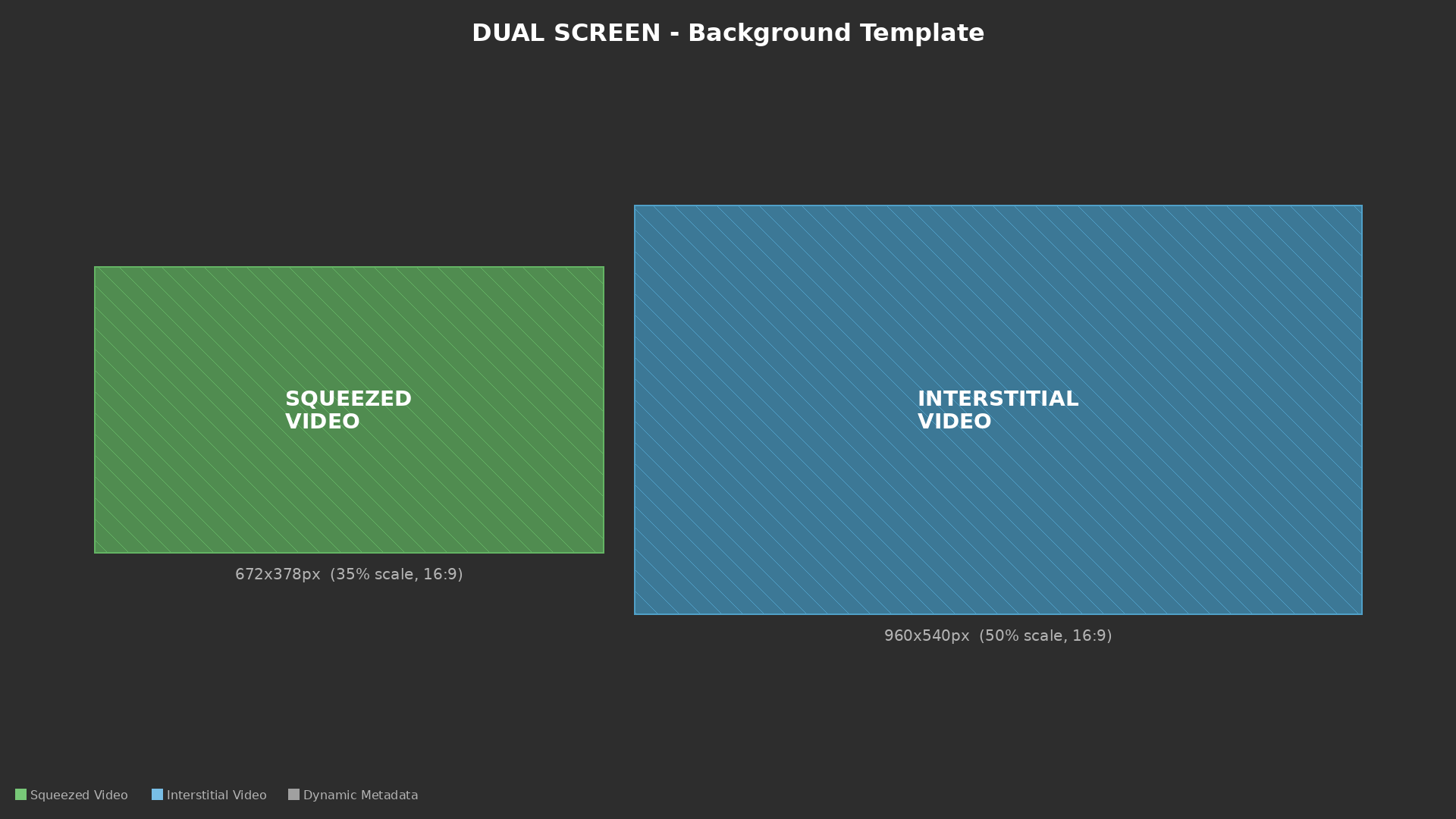

Dual Screen 1920 x 1080

672 x 378px 35% scale (16:9 aspect)

960 x 540px 50% scale (16:9 aspect)

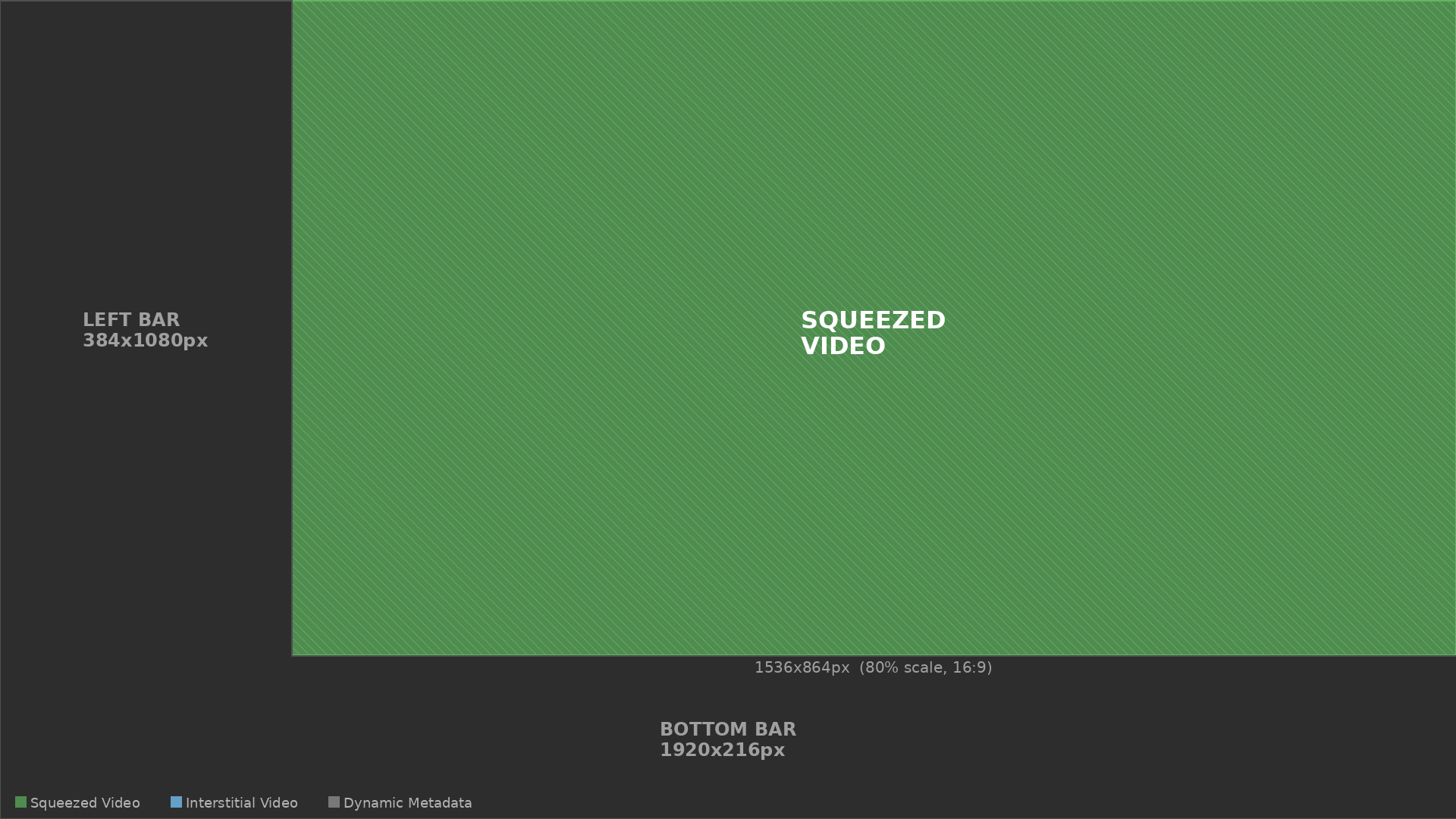

L-Bar 1920 x 1080

1536 x 864px 80% scale, top-right corner (borderless)

384 x 1080px Background left bar (20% width, full height)

1920 x 216px Background bottom bar (full width, 20% height)

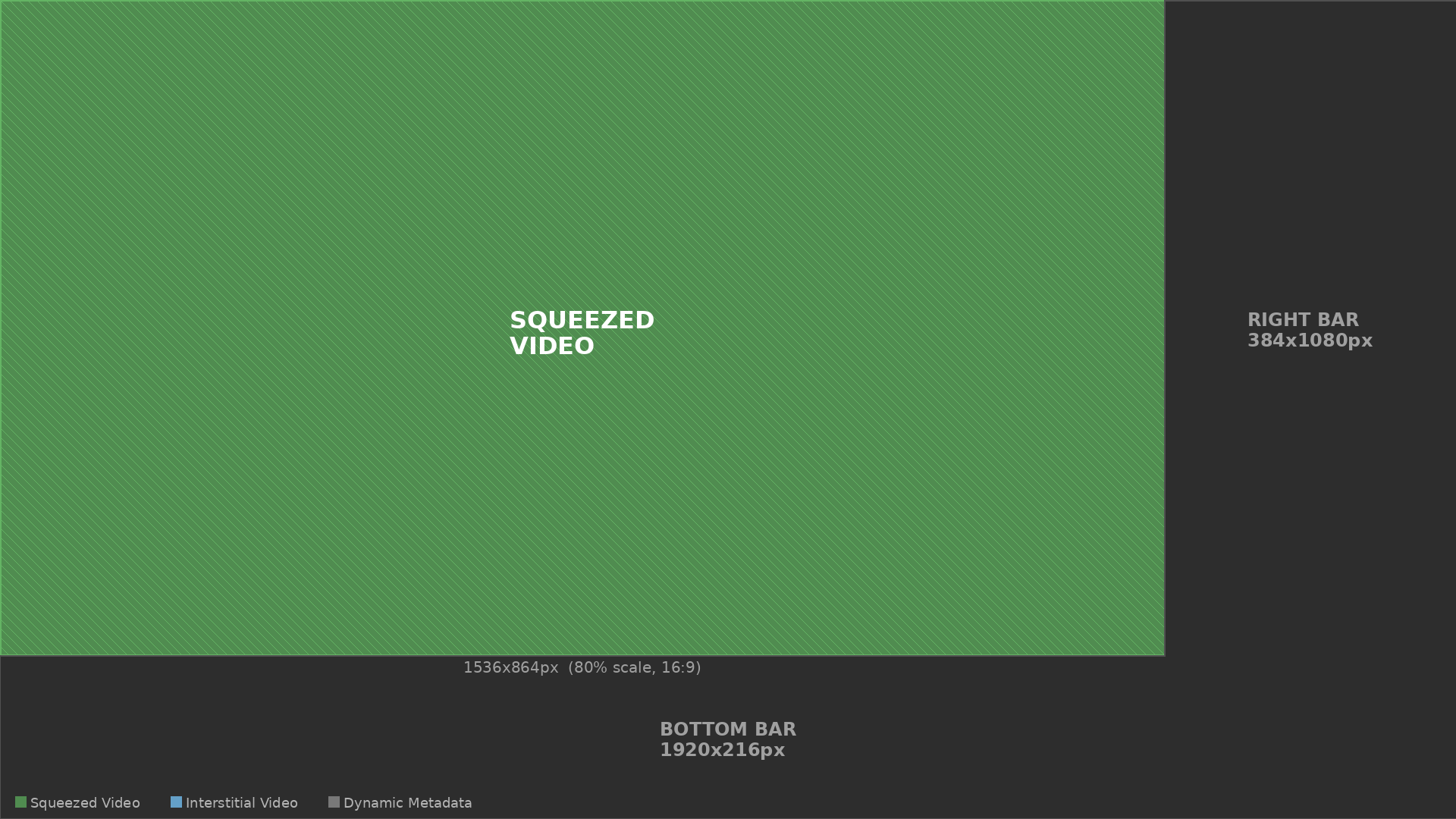

J-Bar 1920 x 1080

1536 x 864px 80% scale, top-left corner (borderless)

384 x 1080px Background right bar (20% width, full height)

1920 x 216px Background bottom bar (full width, 20% height)

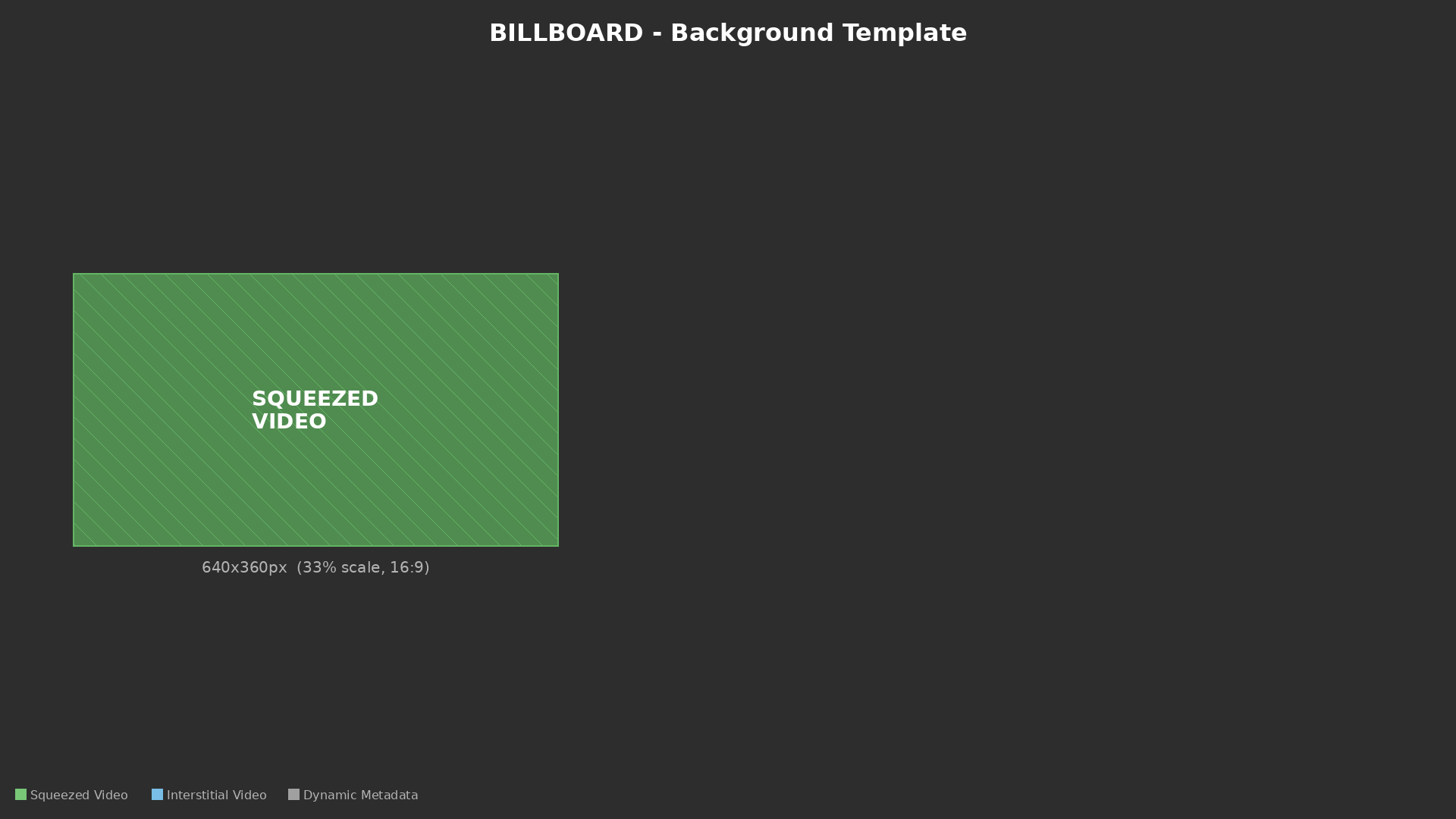

Billboard 1920 x 1080

640 x 360px 33% zone at 5% left, vertically centered

Picture-in-Picture 1920 x 1080

576 x 324px 30% scale, 4% from right, 7.1% from top (equal 77px padding)
